Home Product Medium voltage power cable Medium voltage power cable

All Categories

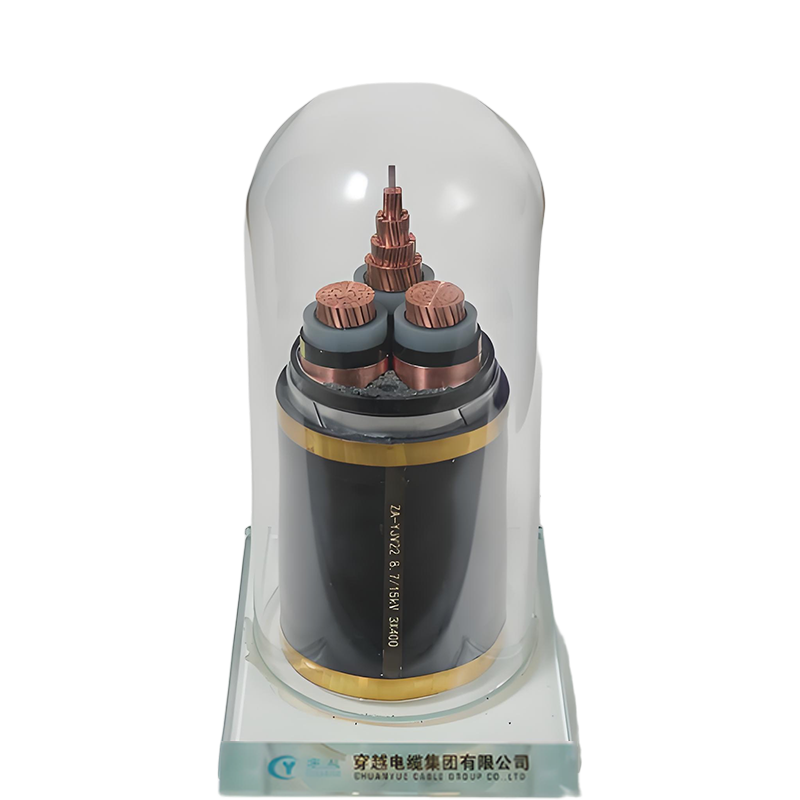

Medium voltage power cable

Model

YJV YJV22 YJLV YJLV22 YJLHV YJLHV22 VV VV22 VLV VLV22 VLHV VLHV22 etc. flame retardant types A B C D halogen-free and low smoke and/or fire resistance (WD NH) requirements etc.

Introduction

Copper, aluminum or aluminum alloy conductor; single core or three cores; cross-linked polyethylene or polyvinyl chloride or ethylene propylene rubber insulation; no armor or metal tape armor or metal wire armor (23, 32, 42, 43, 62, 63); polyvinyl chloride or polyethylene or halogen-free low-smoke polyolefin outer sheath. Rated voltage 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 18/20kV, 21/35kV, 26/35kV. Suitable for fixed installation with rated voltage of 6kV to 35kV in distribution network or industrial equipment. For example, cables for various large buildings, external lines of industrial enterprises, wind power main lines, photovoltaic main lines, thermal power main lines, railways, and subways.

Related Products

No data

Product Details

Product Parameters

Product Features

Application Areas

Packaging and Transportation

details

Rated voltage

3.6/6kV、6/10kV、8.7/15kV、12/20kV、18/30kV

Conductor material

Copper or aluminum

Conductor structure

Single or twisted conductor

Insulation Materials

Cross-linked polyethylene (XLPE)

Insulation thickness

Depending on the voltage level, the range is 2.5 mm ~ 8.0 mm

Shielding Materials

Copper tape shield, copper wire shield or copper foil shield

Sheath material

Polyvinyl chloride (PVC), polyethylene (PE) or halogen-free low smoke material (LSZH)

Sheath thickness

1.5 mm ~ 3.5 mm

Number of cores

Single core, three core

Operating temperature

-20°C ~ +90°C

Short circuit temperature

Maximum 250°C, duration not exceeding 5 seconds

Laying method

Underground laying, pipeline laying, overhead laying

Fire resistance

Comply with GB/T 19666 and other relevant standards

Cable cross section range

25 mm² ~ 1000 mm²

Electrical properties

Dielectric strength and insulation resistance comply with GB/T 12706 and other standards

001

High electrical performance

Adopt high-purity conductors with excellent conductivity to reduce power transmission losses.

The insulation material has stable performance, good voltage resistance and insulation characteristics, and meets the needs of medium voltage power transmission.

002

Safe and reliable

It has excellent flame retardant properties and can effectively delay the spread of flames in a fire environment.

Copper shielding design improves anti-interference ability and ensures stable power signal transmission.

003

Strong durability

Adapt to harsh environments such as high temperature, low temperature, humidity, acid and alkali corrosion, etc.

The outer sheath material has excellent anti-aging performance, extending the service life of the cable.

004

Flexibility and ease of construction

The cable has good flexibility and is easy to lay and install, making it particularly suitable for complex construction environments.

001

Urban distribution network

Used for power transmission in urban medium-voltage power grids to ensure power supply reliability.

002

Industrial power supply

Suitable for industrial power consumption scenarios such as mining, metallurgy, chemical industry, and petroleum.

003

New energy industry

It is widely used in power transmission of new energy projects such as wind power and photovoltaic power.

004

Power infrastructure

Applicable to power supply systems in subways, highways, power plants and substations.

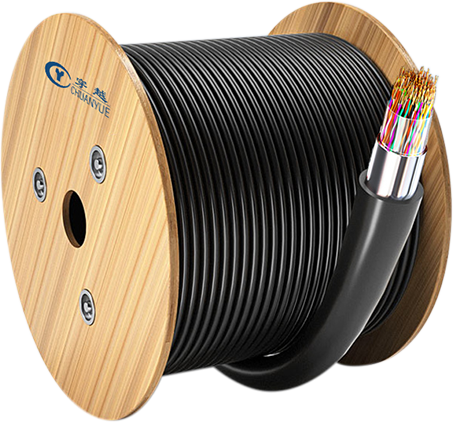

Packaging

It is packed with sturdy wooden or steel shafts and wrapped with waterproof film on the outside to prevent moisture during transportation.

Transportation Requirements

Avoid mechanical damage or severe vibration to the cables during transportation, and use anti-vibration supports when necessary.

Storage conditions

Store in a well-ventilated, dry warehouse, away from direct sunlight and contact with chemicals.

Cooperation Process

The ChuanYue Cable cooperation process includes stages such as initial communication, negotiation and contract signing, production and supply, as well as after-sales logistics. Each stage is closely connected and collaboratively promoted, which is the key path to achieving win-win cooperation.

Initial communication and demand confirmation

Provide customized solutions and quotations

Contract signing

Production and quality control

Shipment and logistics distribution

Installation and technical support

After-sales service

Continuous cooperation and feedback

After-sales service

Quality after-sales service is one of our core competencies. ChuanYue Cable always focuses on customer needs, providing comprehensive and high-quality services to ensure that customers have no worries when using our cable products.

Multilingual online technical support

24/7 Service: Our multilingual technical support team is on standby at all times, providing round-the-clock online responses to customer needs, ensuring that international customers receive timely assistance whenever needed.

Multiple communication channels: Customers can contact our technical experts through various methods such as email, instant messaging, and video conferencing to receive precise technical support.

Hassle-free solutions: Whether it's cable installation, operation, or daily maintenance issues, our team will provide clear and detailed guidance to help customers easily resolve any technical challenges.

Regular remote monitoring and diagnostics

Real-time remote monitoring: With advanced remote monitoring technology, we provide regular cable product monitoring and performance diagnostics for international customers, helping to identify potential issues in a timely manner.

Preventive maintenance: Through remote data analysis, we can proactively identify potential failure risks and offer preventive maintenance suggestions to ensure that customers' equipment is always in optimal working condition.

Continuous optimization of product performance: Regular remote inspections help us ensure the stability and reliability of cable products, reduce risks, and extend the product's lifespan.

Customized online training services

Tailored courses: We provide customized online training services based on the needs of customers from different countries and regions, helping customers master the proper use and maintenance of cable products.

Flexible training formats: Through video conferences, online tutorials, and interactive lectures, we ensure that customers can access professional training anytime and anywhere, quickly mastering the usage methods.

Improving usage efficiency: Our training not only teaches product operation but also covers troubleshooting and daily maintenance, ensuring customers can use the products more efficiently and reduce the occurrence of failures.

International logistics

Global logistics network: With advanced remote monitoring technology, we have established long-term partnerships with international logistics companies to ensure that spare parts and products are delivered quickly and safely to customers, reducing waiting time. We provide regular cable product monitoring and performance diagnostics for international customers to help identify potential issues in a timely manner.

Multilingual online technical support

Regular remote monitoring and diagnostics

Customized online training services

International logistics

Equipment Display

Display

Equipment

Display

Equipment

Honors and Qualifications

Our company has obtained several important certifications, including the National Industrial Production License, CCC certification, and various ISO system certifications. We also hold 2 invention patents, 21 utility model patents, as well as certifications related to international standards, numerous honors from Hebei Province, and recognition as a high-tech enterprise. The company has been selected as a green manufacturing, green packaging, green environmental protection enterprise, and carbon-neutral demonstration unit.

Application Fields

The company's products are widely applied in various industries, covering the power industry, such as power generation, transmission, and distribution; construction industry, including residential, commercial, and industrial buildings; transportation industry, including rail and road traffic; new energy industry for energy storage and charging facilities; and industrial automation and manufacturing industries. Different types of cables play specific roles in each industry, providing power transmission and related support for stable operation and development.

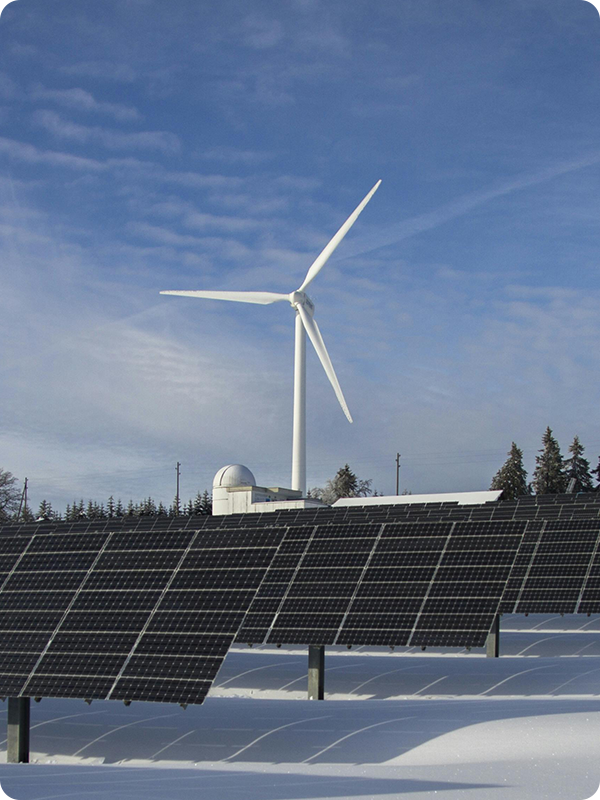

New energy field
